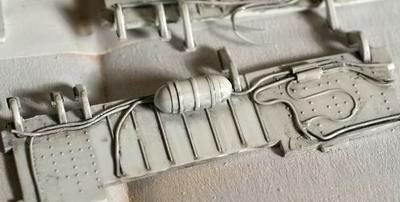

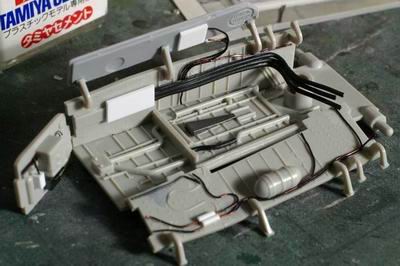

前部車輪格納庫は、リード線、エナメル線、プラ材などでディテールアップ。写真には載っていないが、線を固定する金具はマスキングテープを細く切って接着している。

I simulated details in the forward wheel bay with lead wires, enamel wires and Evergreen plastics. Although not shown in this photo, I made wire holders from masking tape and attached them with instant glue.

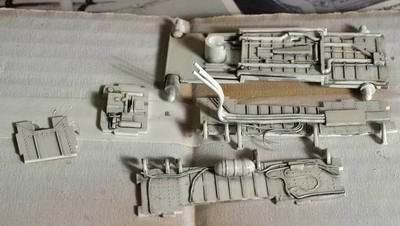

まず白いサーフェサーを吹いて、乾燥後、ラッカー系グランプリホワイトをエアブラシ。

I sprayed white primer, and after it dried, I sprayed Mr. Color Grand Prix white.
その後、エナメル黒でウオッシング。この写真がふき取った後の状態。

Then I applied a wash of enamel black. This photo shows the results of the wash.

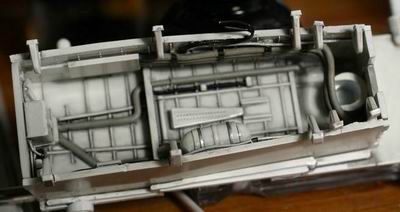

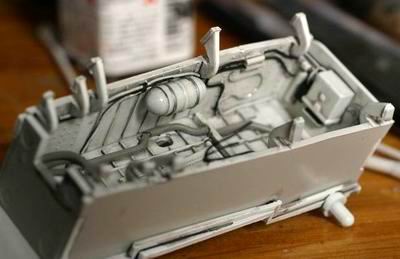

線をエナメルの黒、グレーなどで配色。

I colored the wires with enamel gray and black.
上の灰色の線を固定している3本の黒い帯がマスキングテープ。

The three black holders for the uppermost gray wires in the photograph at left are made from masking tape.
いよいよ頭部に組み込む。

At last we can insert the bay into the nose cone.

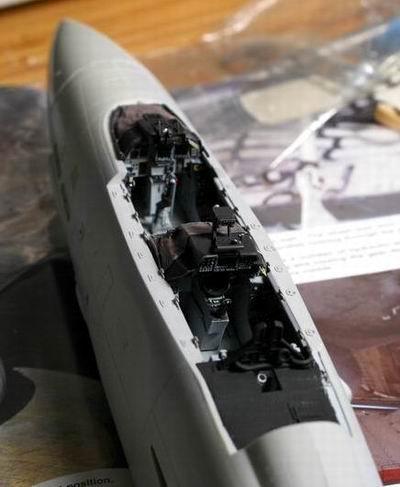

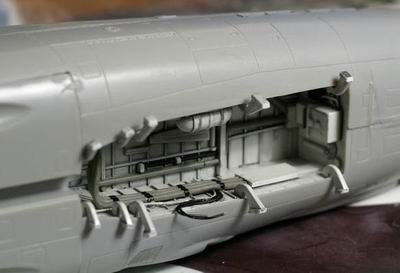

接着した状態。

A view of the glued together nose cone.
レジンキットのキャノピをはめ込む穴が合わないので穴を広げる。

I was foced to widen the holes of the resin parts to enable the canopy to fit( At this point, I was intending to use these holes.)

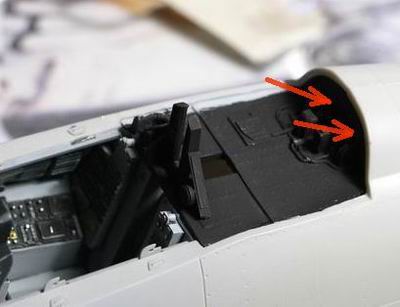

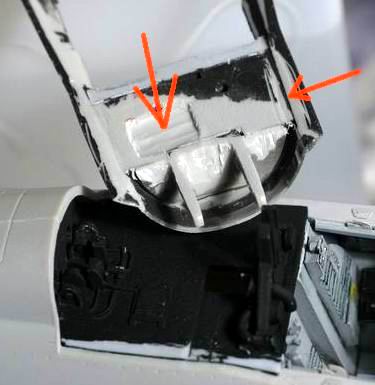

レジンキットの出っ張りがひっかっかるので、キャノピ側を削る。キャノピを開いた状態にする場合は不要な作業。キャノピは着脱できるようにするためキャノピ側を犠牲にする。

Shave areas of the canopy had to be shaved to allow it to fit with the cockpit. If you intend to open the cockpit for display, you cannot remove these details. I want to display my Tomcat at the moment of launch, so I need to close the canopy. However I would like not to glue it to the fuselage because I want to be able to examine the interior afterwards.
はめ込んだパネルの隙間はそのままではみっともないので、一度瞬間接着剤で埋めてから筋彫りをする。

It's difficult to obtain perfectly clean panel lines, because there are always some gaps occurred when putting panels into the hole like this. I pour instant glue to gap and after it dried, Sand it and then scribe lines.

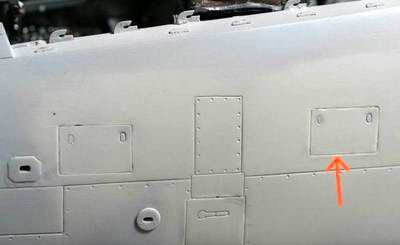

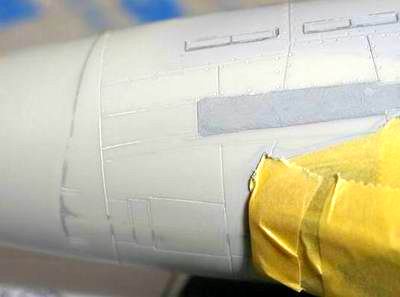

給油パネルはなぜか凹んでいるので、パテで埋めてやすりでならす。

The fuel panel is not a hole. So I used putty to make it level.
こんな感じ。

Smooth flat. Like So.

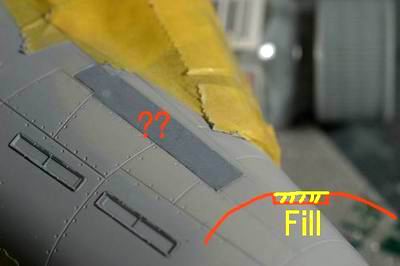

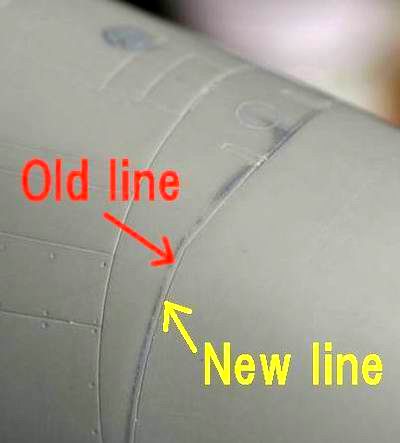

ノーズコーンはしっかり接着し、少しずれた位置を筋彫りする。

I glued the nose cone tightly, and pour instant glue to fill any gaps. Then I sanded it smooth and scribed new lines slightly to one side of the original line.

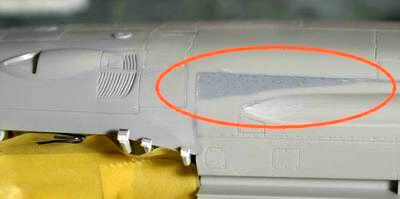

このパーツがうまくフィットしない。パテで強制補正する。

This part did not fit well to the fuselage. I used putty to fill the gap and smoothed it.
